TGS2444/World leader in gas sensing innovation

TGS2444

Model

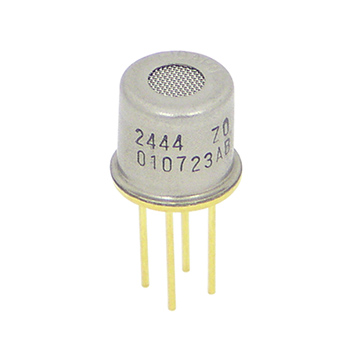

TGS2444
Application
Industrial safety
Target gases
Ammonia
  • Product information
  • Technical information
  • Quotaition This model was listed
    in a quotation form.
    Continue

Features

* Low power consumption
* High sensitivity/selectivity to ammonia(NH3)
* Miniature size

Application examples

* Ammonia leak detection in refrigerators
* Ventilation control for agricultural and poultry industries

Specifications

Target gases Ammonia
Typical detection range 10 ~ 300ppm
Sensing principle MOS type
Driving voltages Heater Voltage:VHH=4.8V±0.2VDC for 14ms
VHL=0V for 236ms
Circuit Voltage:
VC=0V for 245ms
VC=5.0V±0.2VDC for 5ms
Power consumption 56mW (typical)
Dimensions φ9.2×7.8mm
Weight Approx. 1.2g
