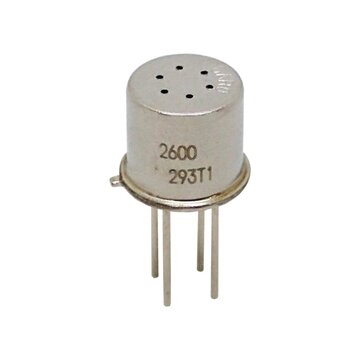

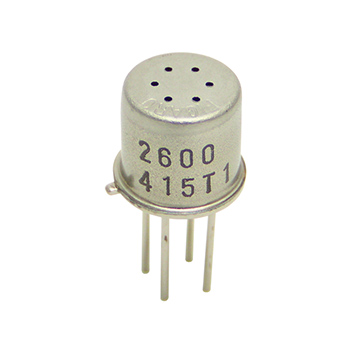

TGS2600

Model
TGS2600
Application
Air quality control, Appliance control
Target gases
Air contaminants
(hydrogen, ethanol, etc.)
  • Product information
  • Technical information
  • Quotaition This model was listed
    in a quotation form.
    Continue

Features

* Low power consumption
* High sensitivity to gaseous air contaminants
* Long life and low cost
* Uses simple electrical circuit
* Small size

Application examples

* Air cleaners
* Ventilation control
* Air quality monitors

Specifications

Target gases Air contaminants
(hydrogen, ethanol, etc.)
Typical detection range 1 - 30ppm of H2
Sensing principle MOS type
Driving voltages Heater Voltage:5.0V
Circuit Voltage:5.0V
Power consumption 210mW
Dimensions φ9.2×7.8mm
Weight Approx. 1.1g

Other gas sensors & modules for the same target gas
