PDEM SeriesHigh-functionality
Gas Sensor
Evaluation Modules

PDEM SeriesHigh-functionality Gas Sensor
Evaluation Modules

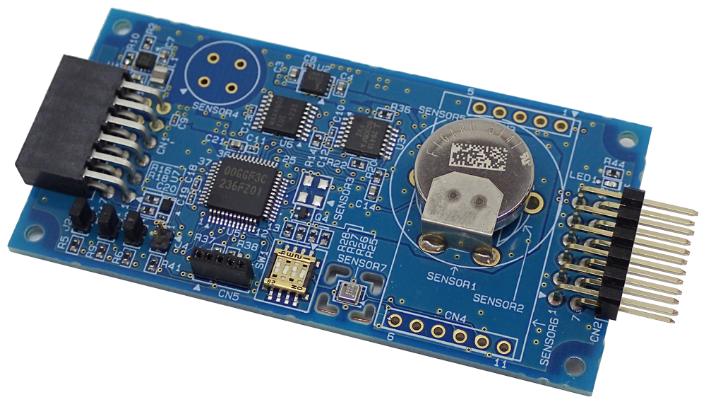

About PDEM

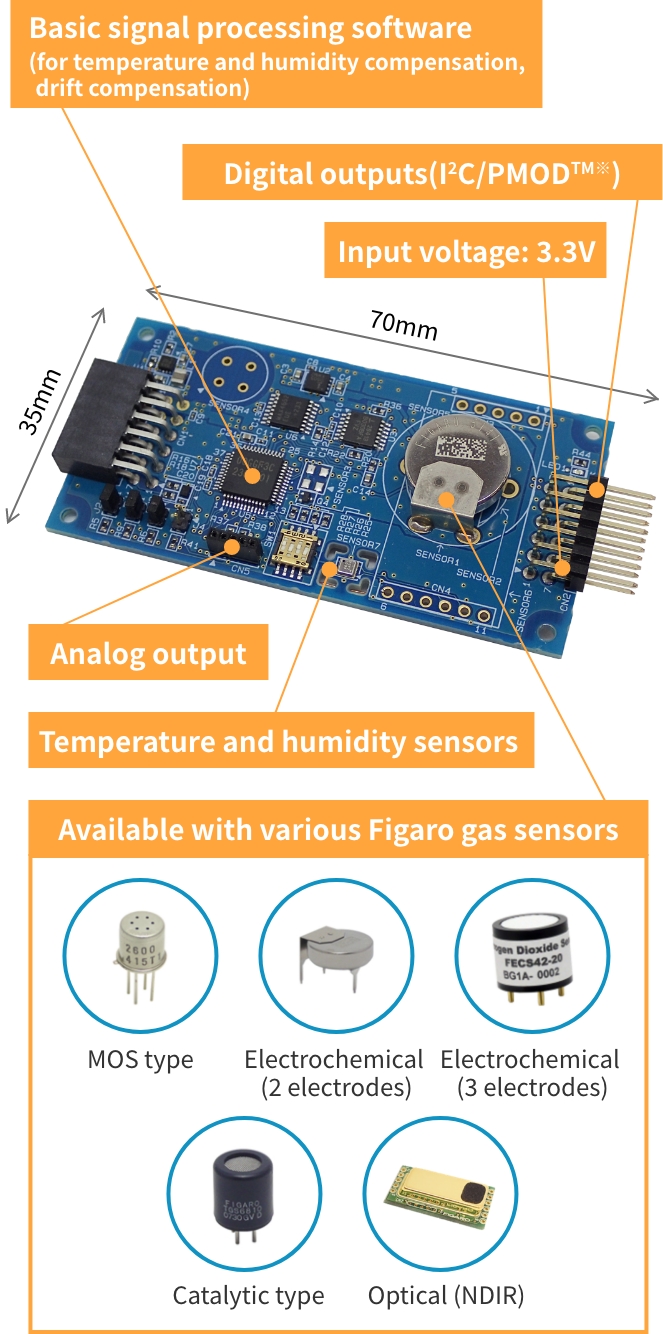

  1. The PDEM series evaluation modules are suitable for evaluation of Figaro semiconductor (MOS) type, electrochemical, catalytic, and optical gas sensors.
  2. Every evaluation module is factory pre-calibrated using a typical target gas. This allows for monitoring gas concentrations with digital and analog outputs.
  3. The built-in temperature and humidity sensors can be used for monitoring ambient temperature and humidity, as well as for temperature and humidity compensation of gas sensor responses.
  4. Compatible with the Renesas Quick-Connect platform

Features of PDEM Series

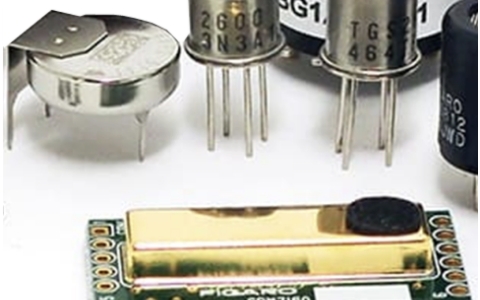

Available with various Figaro gas sensor models

・MOS type (TGS2600/2602/2603)
・Electrochemical (TGS5141/FECS series)
・Catalytic (TGS6810)
・NDIR type (CDM7162)

Extensive selection of PDEM modules with various gas sensor models

Built-in software for sensor output signal processing

・Calculation of gas concentrations
・Temperature and humidity compensation
・Long-term drift compensation

The software in the PDEM module is designed specifically for the gas sensor type mounted on the module.

Factory calibrated before shipment

Every module is pre-calibrated using
a typical target gas.

Specific factory calibration for each sensor model

I2C Communication interface

・Gas concentration (ppm/IAQ Index)
・Temperature (℃)
・Humidity (%RH)

RENESAS
Real-time sensor output monitoring through I2C communications

Ideal for your first evaluation
of gas sensors

Features of PDEM evaluation modules

※PMODTM is a registered trademark of Digilent.

Strong
points
  • Digital and analog sensor outputs
  • The integrated compensation software designed for each sensor model
    facilitates easy start of gas sensor evaluation.
Extension
function

Daisy chain connection to RENESAS Quick-Connect platform compatible
wireless communication modules and multiple sensor modules

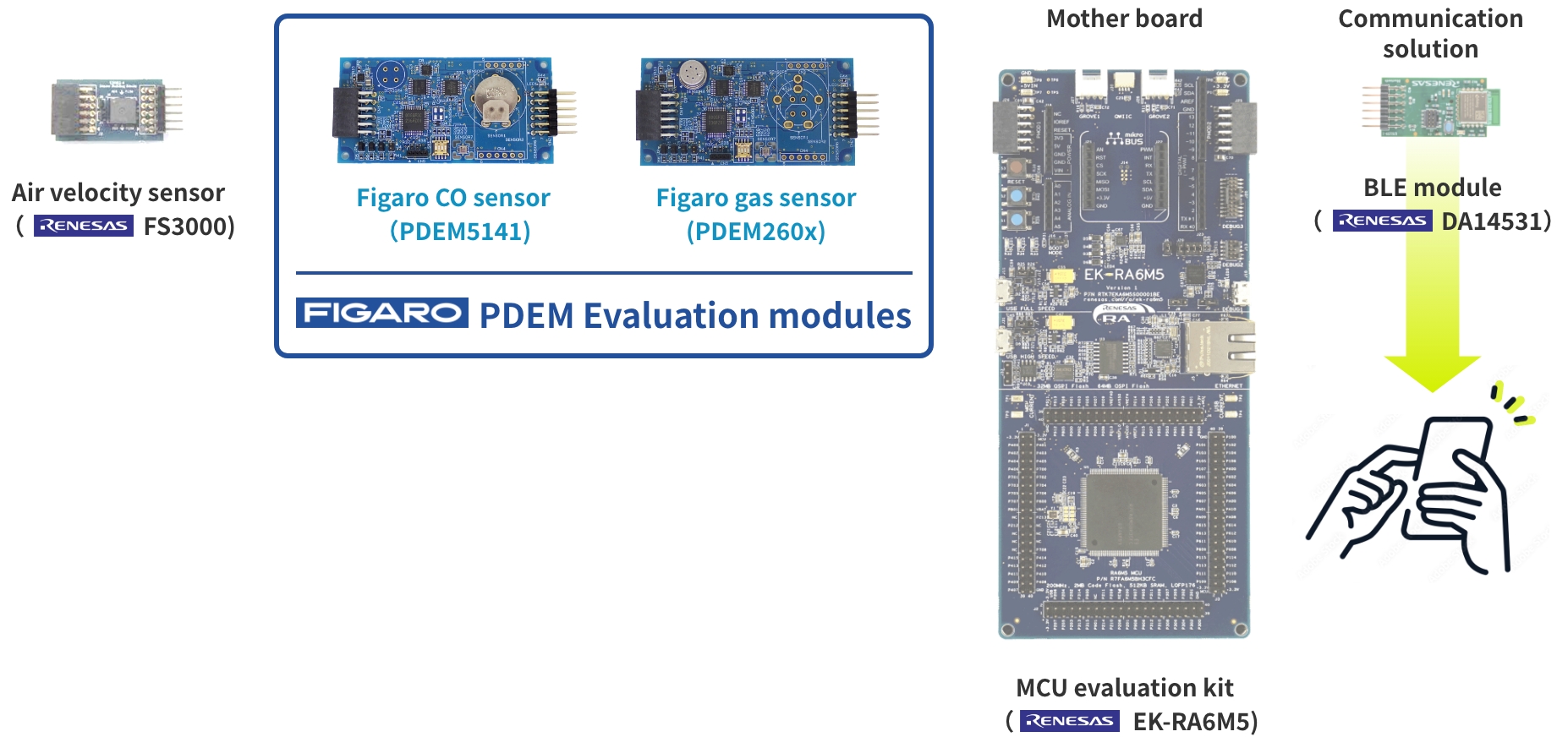

System Configuration Example

Various modules can be connected in a daisy chain.

Strong
points
  • Connecting to Quick-Connect platform compatible modules allows for wireless
    communications such as BLE, Wi-Fi, LTE.

Wireless communications can be realized by connecting Figaro PDEM evaluation modules to Quick-Connect platform compatible communication modules in a daisy chain.

RENESAS
About Quick-Connect platform

The Quick-Connect platform is a design tool platform in modular form developed
by Renesas Electronics Corp.
A building block system with compatible hardware and software modules facilitates
the development of a customized IoT system comprising of microprocessors,
sensors, and communications.

  • Building blocks for
    System Design

  • Industry-standard
    interface

  • Accelerated time
    to market

  • Easily add wired &
    wireless Connectivity

※ PMODTM compatible modules can be connected in a daisy chain.
Note: Figaro Engineering Inc. supplies the PDEM evaluation modules only. Please refer to Renesas website for details of the EK-RA6M5 module and communication modules.

Product Line-up

PDEM Evaluation modules with Figaro gas sensors

Scroll horizontally to see the area that is not displayed.

Model no. Gas sensor models Target gases Sensor principle Gas conc. range QCIoT series evaluation modules
PDEM42-20 FECS42-20 Nitrogen dioxide Electrochemical 0~30ppm RENESAS QCIoT-Figaro-FECS42-20
PDEM43-20 FECS43-20 Sulfur dioxide Electrochemical 0~30ppm RENESAS QCIoT-Figaro-FECS43-20
PDEM44-100 FECS44-100 Ammonia Electrochemical 0~150ppm RENESAS QCIoT-Figaro-FECS44-100
PDEM44-1000 FECS44-1000 Ammonia Electrochemical 0~1500ppm RENESAS QCIoT-Figaro-FECS44-1000
PDEM50-100 FECS50-100 Hydrogen sulfide Electrochemical 0~150ppm RENESAS QCIoT-Figaro-FECS50-100
PDEM5141 TGS5141 Carbon monoxide Electrochemical 0~150ppm RENESAS QCIoT-Figaro-TGS5141
PDEM2600 TGS2600 Indoor air quality MOS Index 0~500 RENESAS QCIoT-Figaro-TGS2600
PDEM2602 TGS2602 Indoor air quality MOS Index 0~500 RENESAS QCIoT-Figaro-TGS2602
PDEM2603 TGS2603 Indoor air quality MOS Index 0~500 RENESAS QCIoT-Figaro-TGS2603
PDEM6810 TGS6810 Methane, hydrogen Catalytic 0~5000ppm RENESAS QCIoT-Figaro-TGS6810
PDEM7162 CDM7162 Carbon dioxide NDIR 0~5000ppm ※Product information is not available on Renesas website.
FIGARO PDEM7162

※Data sheets of the Renesas QCIoT series evaluation modules are available from the links to Renesas website above in the table.

Click here for more details on PDEM series evaluation modules.
